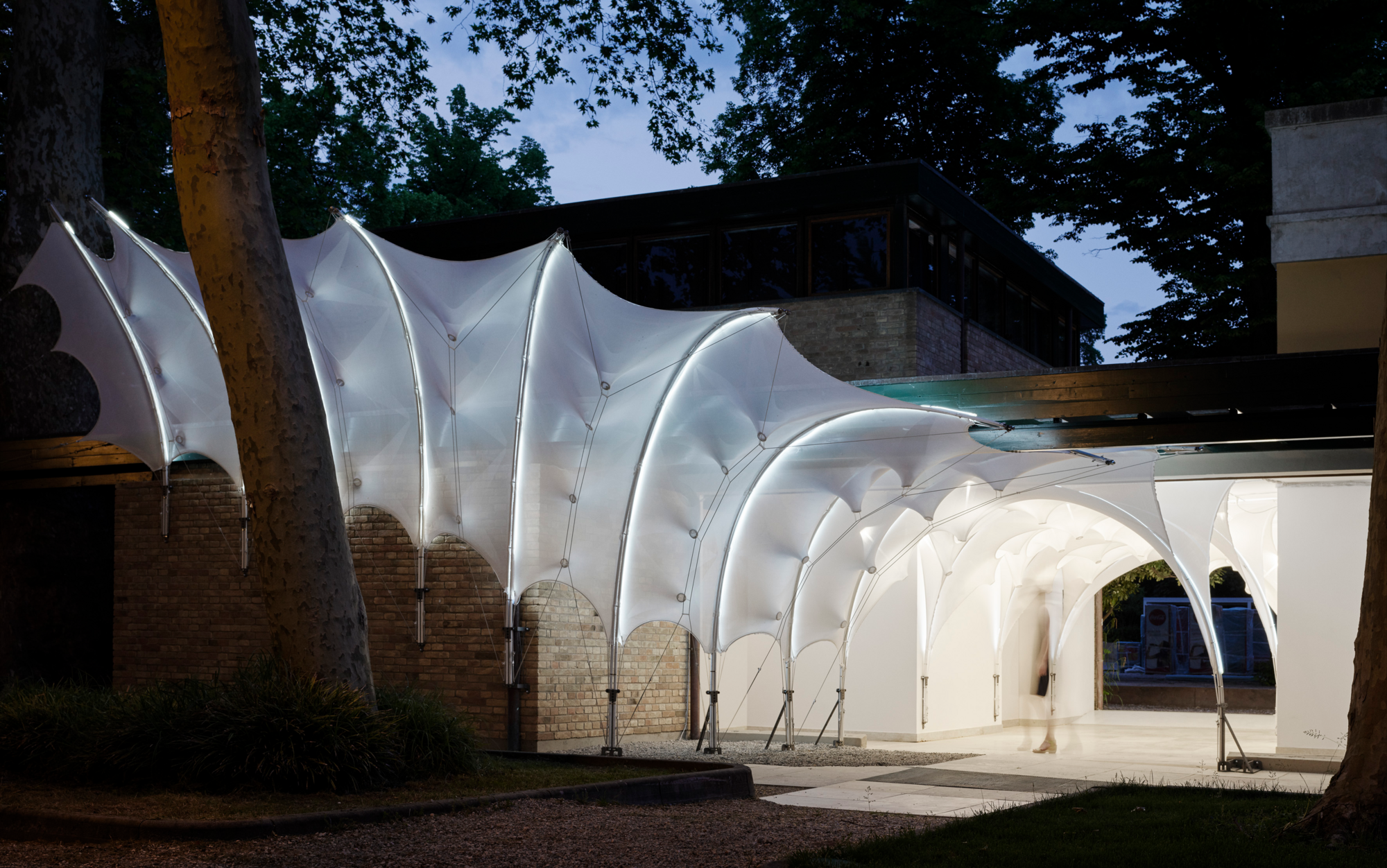

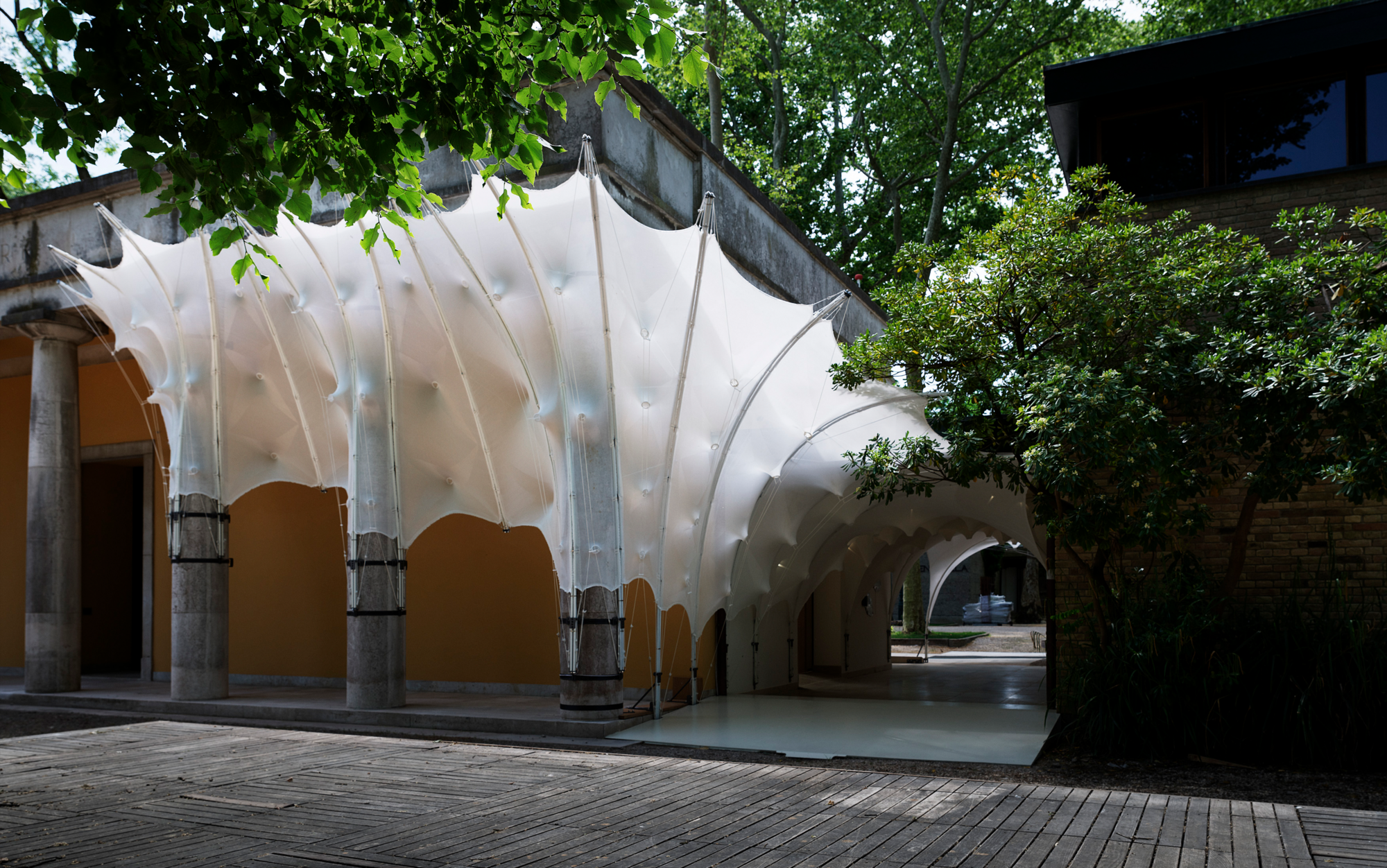

Isoropia | Danish Pavilion Biennale 2018
Venice


Client DAC (Danish Architecture Centre), Biennale di Venezia
Architecture CITA
Image credits Anders Ingvartsen
Scope Structural design all phases
Materials Customized knitted fabrics, GRP rods
Covered area 110 m²
Envelope area 160 m²
Planning period 2017 - 2018
Completion 2018

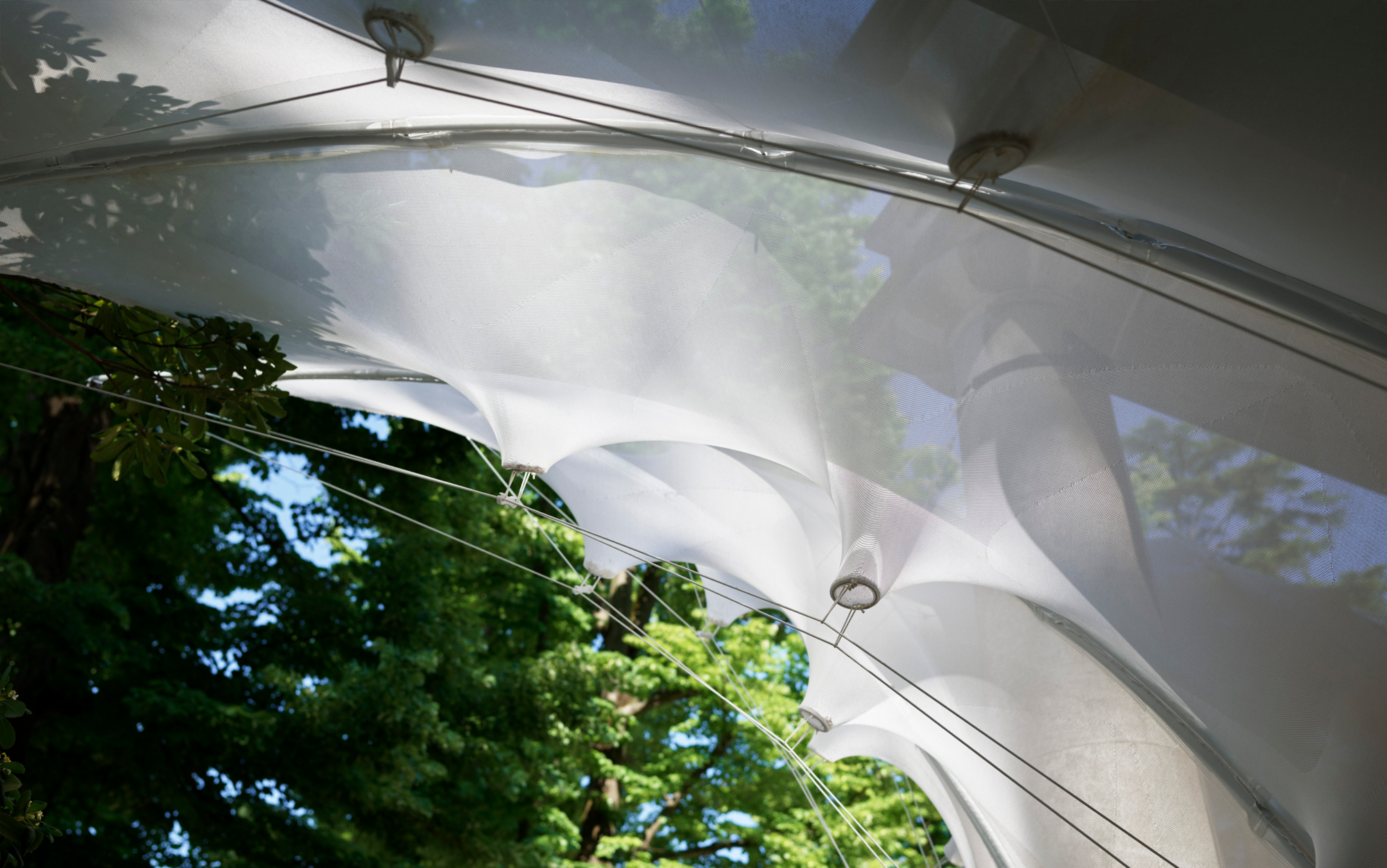

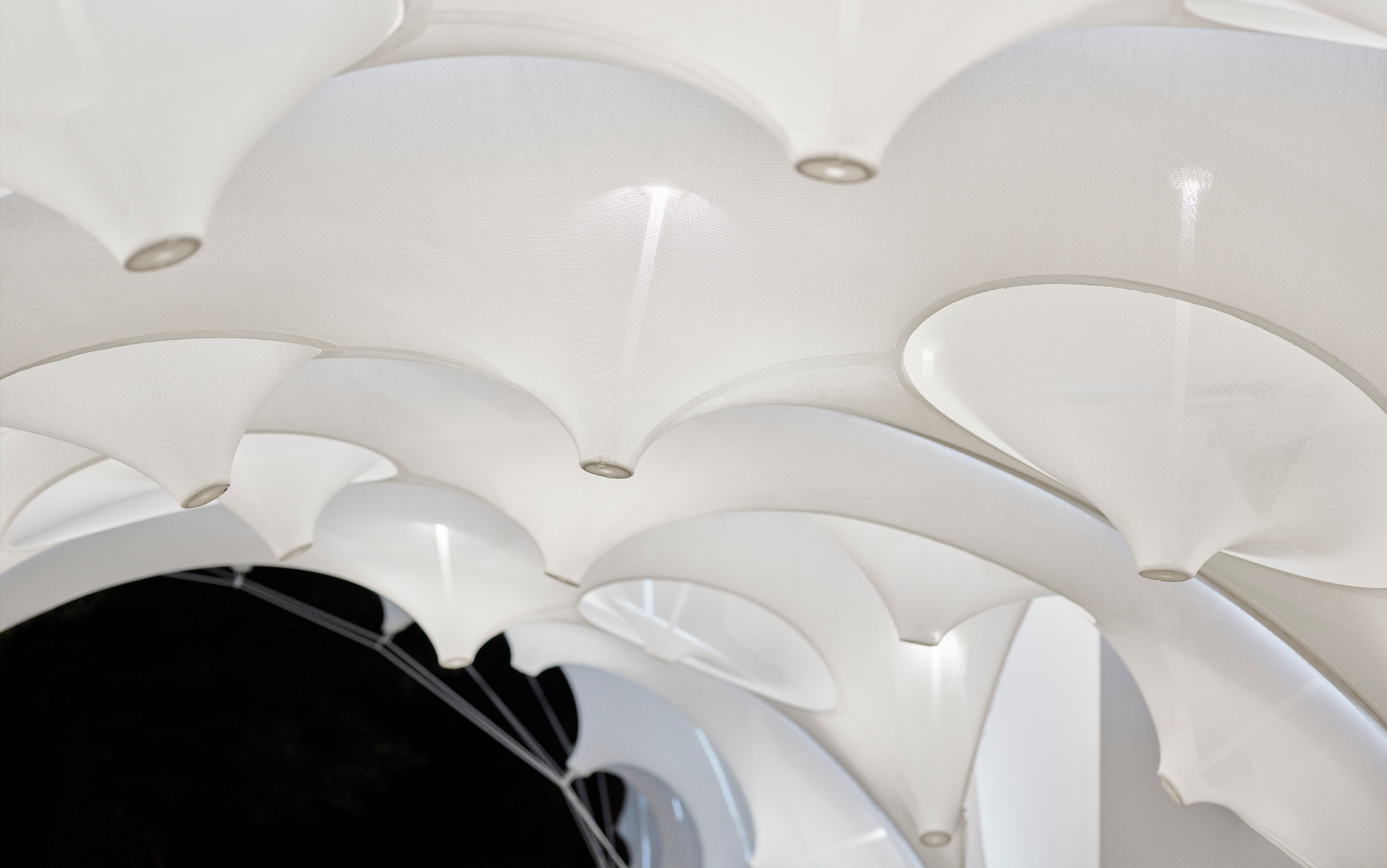

Isoropia - meaning balance, equilibrium and stability - is a finely tuned balance of tension and compression. Here, bespoke knitted textiles with varying material properties are embedded within actively bent fibreglass rods, finding together their equilibrium and form.

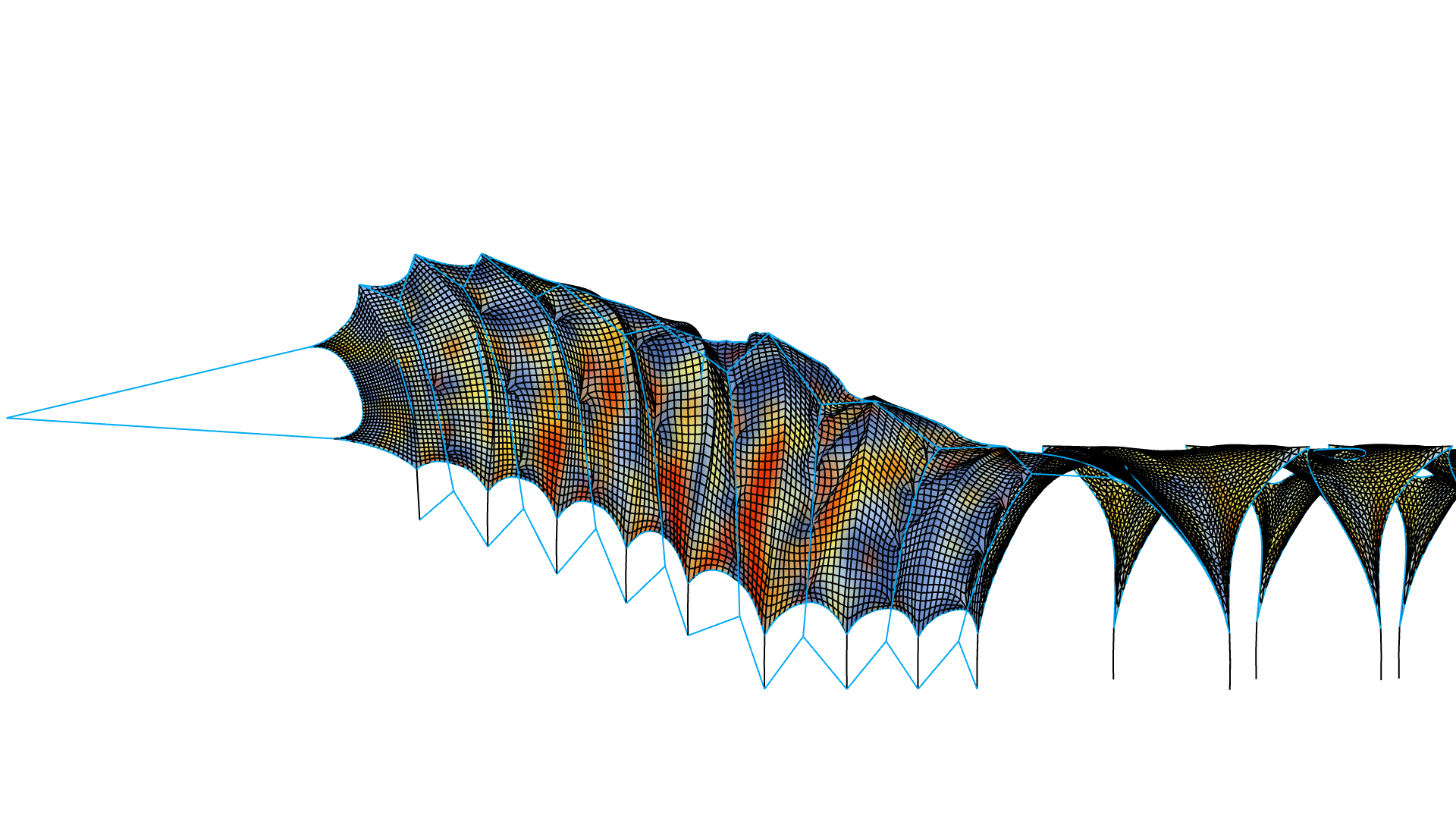

Structures are rarely mono-material or purely in tension or compression. Instead they are composed of multiple materials that each hold their own performance. In Isoropia, the forces in the bending active fibreglass rods are counterbalanced by the knitted textile system. Through the interaction of these two elements a stable equilibrium is established. Isoropia uses knit as a textile membrane. Knit is softer and less homogenous than traditional laminated membranes and its structure can be varied to create areas of more or less stretch.
